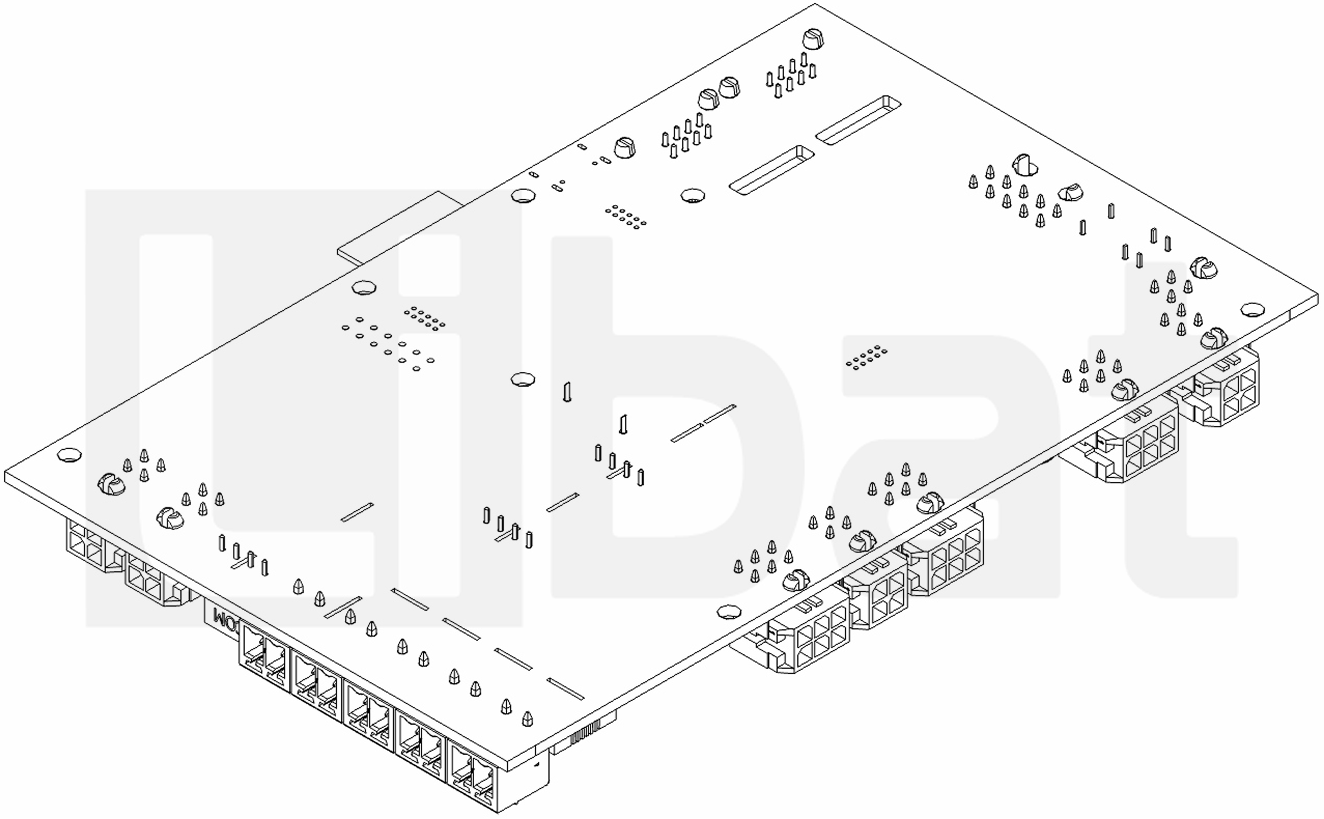

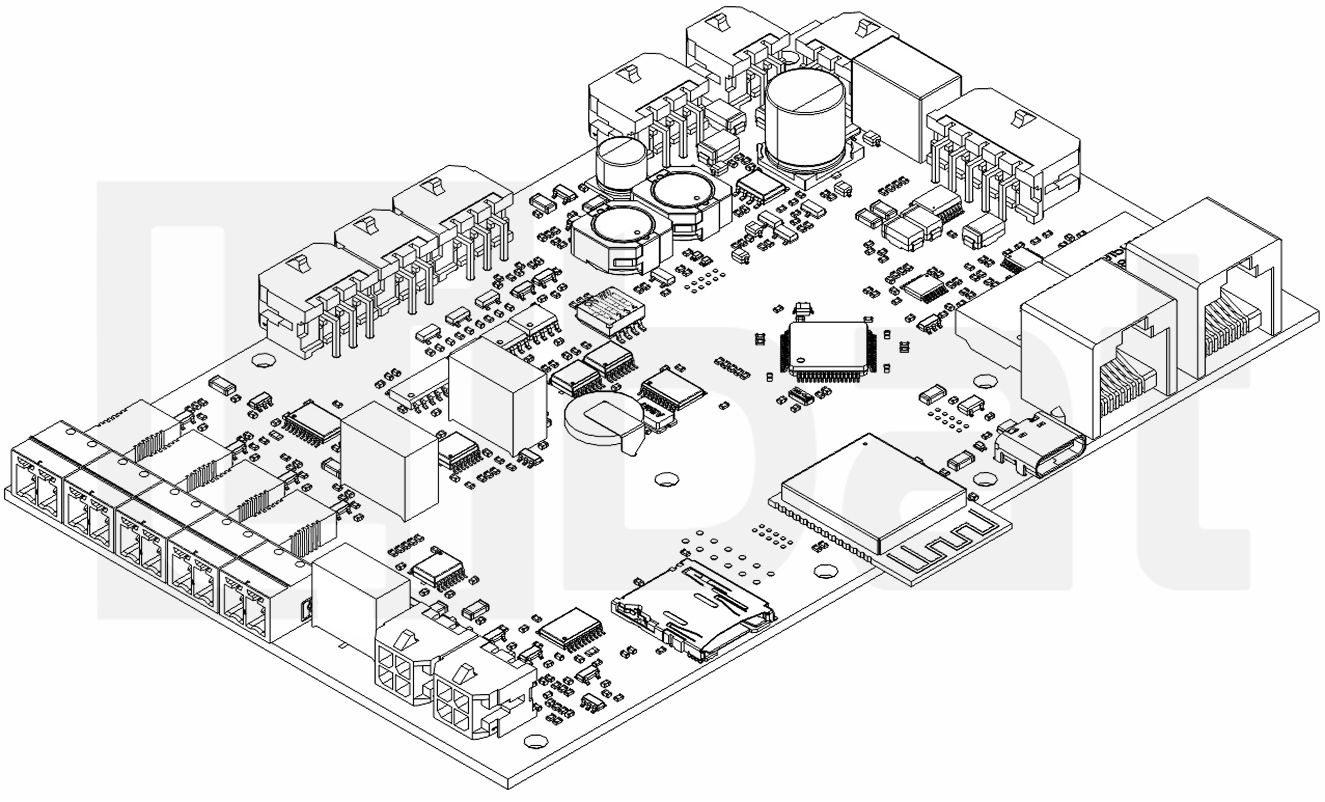

1. BCU2002 Introduction
Introducing the LiBat™ BCU2002, a cutting-edge multi-master Battery Control Unit (BCU) that sets new standards in advanced energy management. Designed for optimal performance in diverse applications, this innovative device stands at the forefront of battery control technology. The BCU2002 boasts unparalleled capabilities as a multi-master system, allowing for seamless communication and control in complex battery configurations. With a focus on precision, efficiency, and reliability, this battery control unit redefines the way we manage energy storage, offering a versatile solution for a wide range of industries. Embrace the future of battery control with LiBat™ BCU2002 – where advanced technology meets unparalleled functionality.
Key Features:
- Small Size 135mm x 90mm
- Advanced Hardware for Rough Conditions
- Optional up to 1500V isolated high voltage sense inputs (4 channels)
- Optional GSM/GPS extension board on the extension port
- 1.5kV isolated RJ45 daisy-chain communication, a second RJ45 optional
- 1.5kV Isolated 2xCanbus, 1xRS485, 1xRS232 Communication Interfaces
- 1.5kV Isolated 4 Analog Inputs
- Onboard RTC and backup battery
Table.1.1: BCU2002 Technical Specifications
| PARAMETER | SPECIFICATIONS |
|---|---|
| Power Source | External Power. (12-80Vdc) |
| Power Consumption | Power Down: ~1 mW , RUN State: ~2400mW |
| Wake Up Trigger | User Button |
| LEDs | Power, Run/Error Status |
| Relays | 1x SPDT Relay Output |
| High Side Switch Outputs | 4x Outputs (12V internal or external 12-24Vdc) |
| Logic Inputs | 2x (Compatible with button, switch, short circuit inputs) |
| Logic Outputs | 1x TTL Output (High: 5V, Low: 0V) |
| Inputs | 1x User button with led |
| RTC | Onboard RTC with backup battery |
| Slave Communication | Daisy-chain |
| Slave Communication Interface | 1x 1.5kV Isolated RJ45, second RJ45 optional |
| Slave Module Support | Up to 16 slaves |
| Precharge | Configurable: disabled, time only, or time and current |
| DFU Mode | Embedded bootloader for firmware upgrades. |
| Digital Interface-1 | 1x 1.5kV Isolated Half Duplex RS485 |
| Digital Interface-2 | 1x 1.5kV Isolated RS232 |
| Digital Interface-3 | 2x 1.5kV Isolated CANBus 2.0b |
| Communication Protocols | LiBat standard protocols, JSON, Modbus RTU |
| Current Sensor | Compatible with 5V external current sensors |
| Operating Temperature | -20 °C to +70 °C (-4° F to +158° F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions and Weight | 135 mm X 90 mm X 18.6 mm, ~100g |
