6.2 Limon™ BMS Software Event Status

For a stable battery system, you always must be ready for unpredictable results of whole system.In order to decide best parameters, you need to know past events and results.

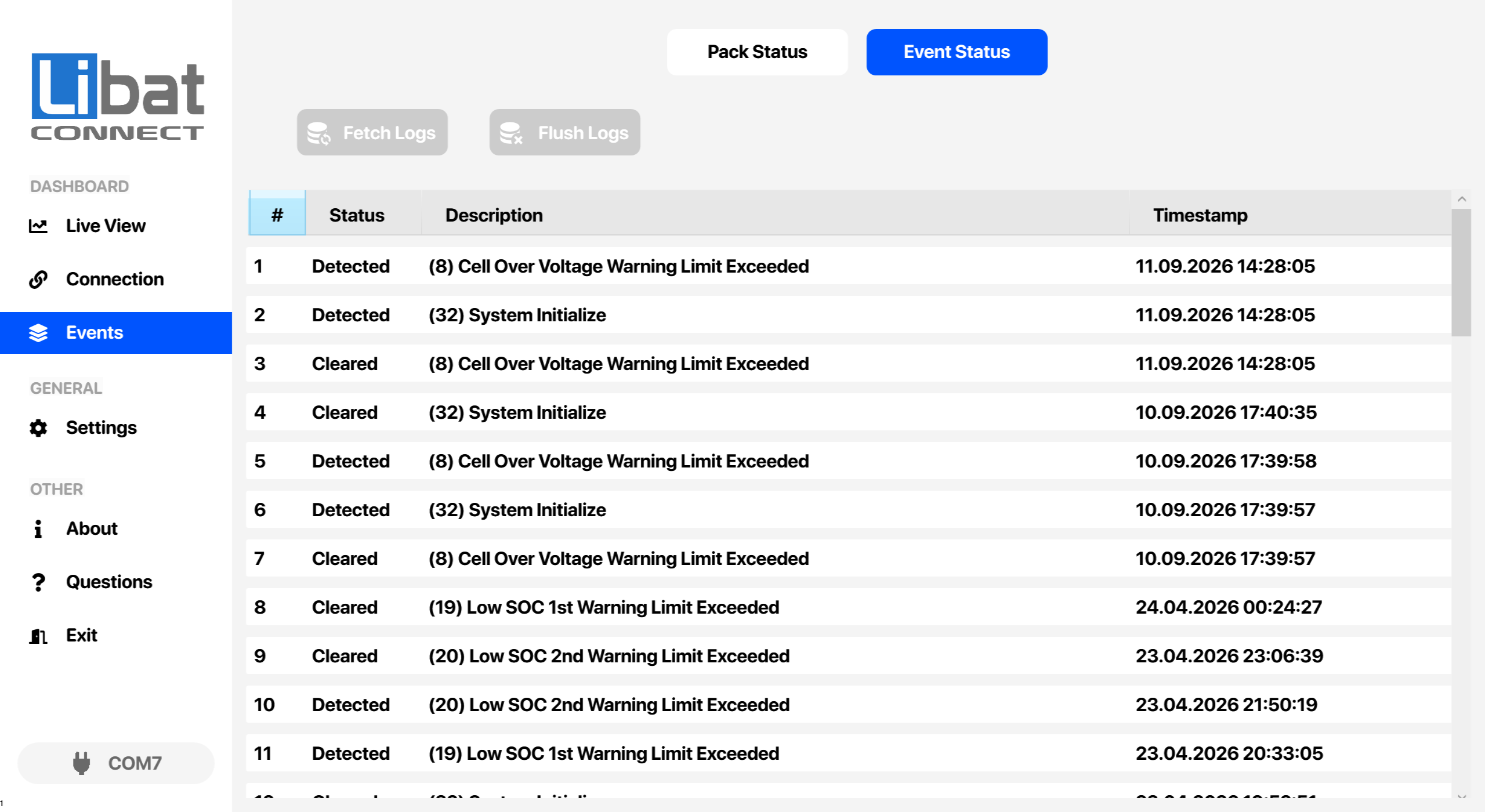

Fig.6.2.1: Event Status Screen

Fig.6.2.1: Event Status ScreenT1T2G1G2G3M3

Table.6.2.1: Screen Elements Descriptions

No. Description
T1 Pack Status tab.
T2 Event Status tab.
M3 Selection tab for Events.
G1 Fetches all logs from the BMS.
G2 Permanently deletes all logs in the BMS.
G3 Event list. Scroll down for more events.
G3 — Event list. Scroll down for more events.

Each row shows the event number, its status (cleared or detected), the event description and number, and the event time.
